4G CAT4 CPE ZLT P11 set(Outdoor+Indoor)

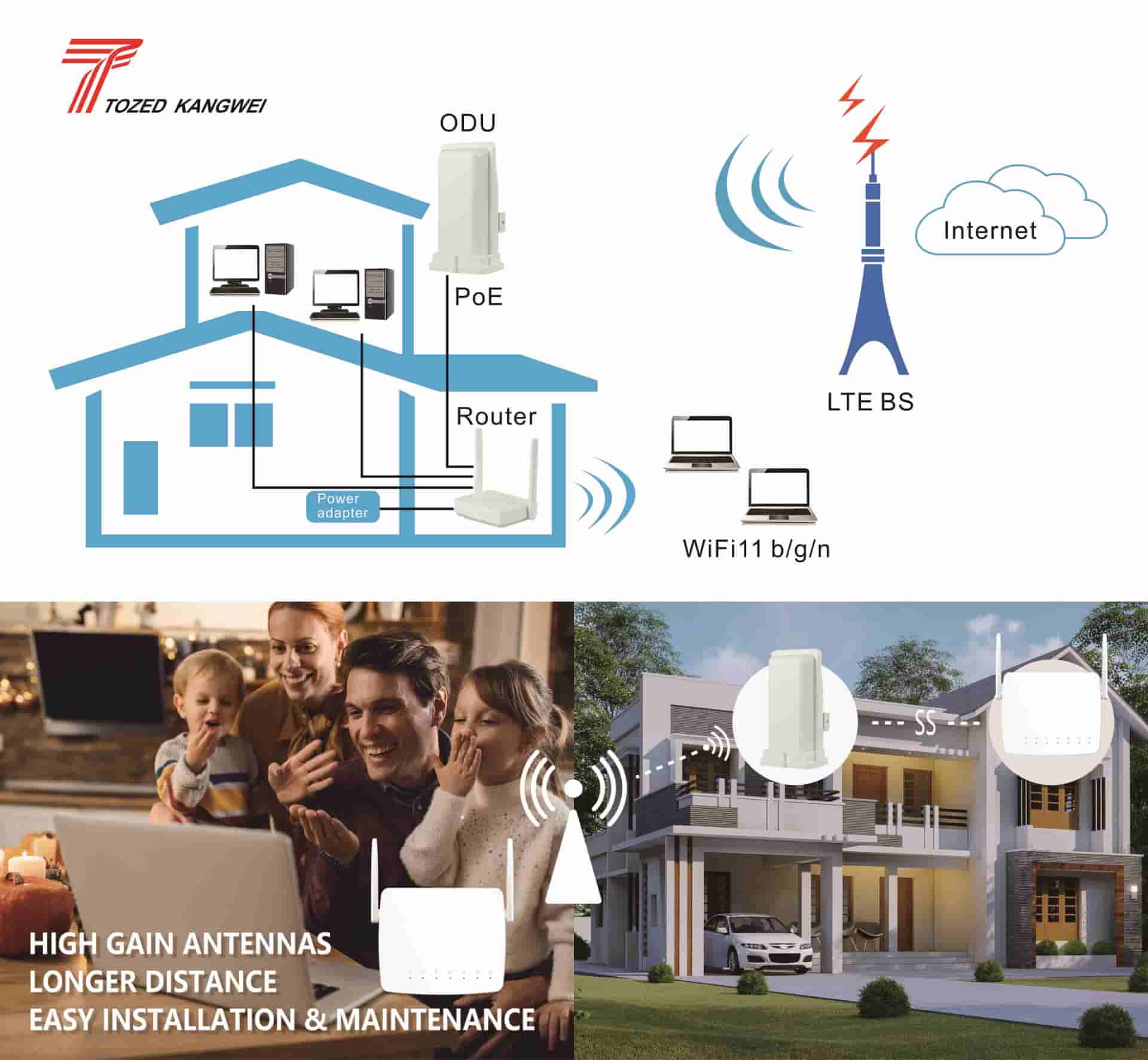

4G CAT4 Outdoor CPE Set 1*ODU; 1*IDU 2*Lan ports; 1*RJ11 port VoLTE/VoIP/CSFB


Scheme & Case

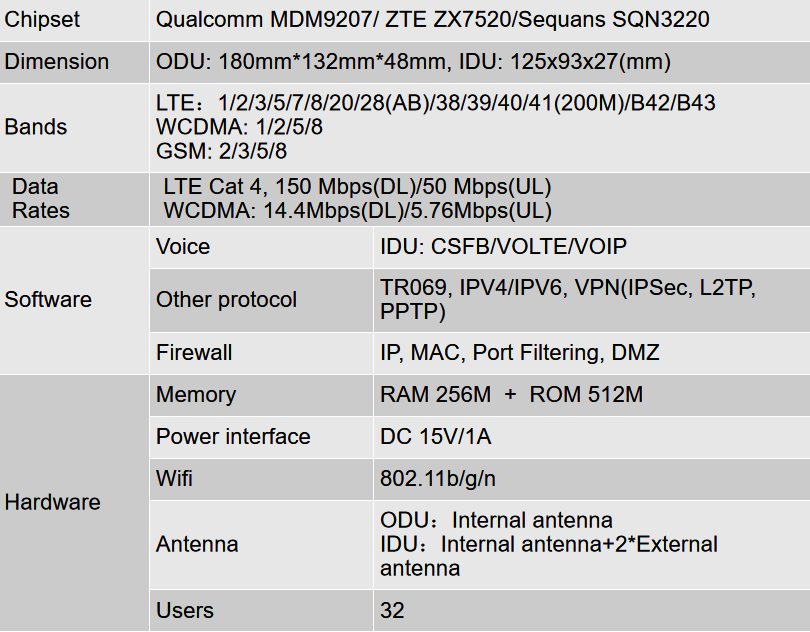

Technical specifications



WATTD-LTE/FDD/WCDMA/TD-SCDMA/GGE(GSM/GPRS/EGPRS)
FrequencyGSM : 850/900/1800/1900
TD-SCDMA:Band 34/39
WCDMA : Band 1/2/5/8
TD-LTEBand 40/38/ 39/41
FDDBand 1/3/5/8
Status DisplaySupports displaying detailed 4G network information, including network quality, signal strength information, etc.
Tempreture-40°-70°
SoftwareSupport lock frequency band, lock cell and lock physical cell, lock lock card and machine card interlock; support encryption card
Power supplyDC 2.0(15V,1A)

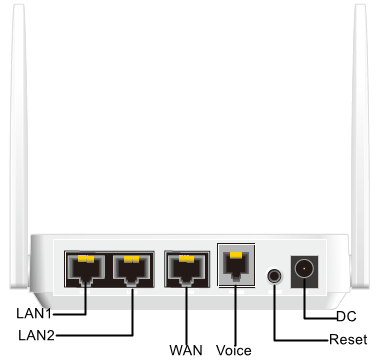

Port1 LAN/RESET
VoiceNo
AntennaBuilt-in antenna, high gain
SIM / USIMSupport SIM&USIM card
Config upgradeUnified network management, support local, platform firmware upgrade, configuration upgrade
Software upgrade

Support local patch upgrade
