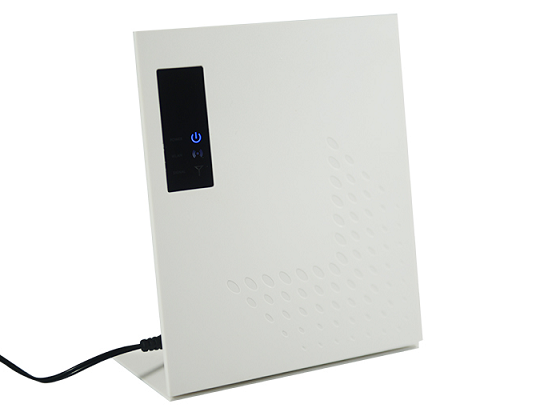

4G CPE P10(Indoor )

4G CPE Rural Wireless Home Broadband Solution can meet the market needs of rural users and urban "complementary points". It ensures good user experience through monthly access to the Internet and can effectively increase the use of existing rural 4G network resources. Rate, increase investment efficiency. The access cost is low, and the network elements and support systems on the existing network are small, and they can be quickly implemented to form broadband users. l Supports 4G wireless data access and HD voice services; l Voice and data forwarding can be supported simultaneously; l Broadband high-speed access; l The humanized design is stylish and generous; l Support 4G WiFi Internet access

  •        p10 xq.png

    Main function :
    4G LTE Internet access
    Support Voice (optional )DC power adaptor
    2,4G WIFI
    Frequency can be customzied
     Multiple indicator lights
    High gain antenna
    4LAN port /1LAN port
    Indoor
    Support customzied SIM  card
    Support Lock card , lock network , lock cell
    password protection
    Built-in antenna
    Customize  SSID and encryptionSupport encryption card
    Main function :
    Support VOIP/4G VOLTE (Optional )appearance, suitable for home and officeHigh antenna gain
    Frequency can be customized
     Support Lock card , lock network , lock cell  Support WIFI

Scheme & Case



Technical specifications



Internet Mode
TD-LTE/FDD/WCDMA/TD-SCDMA/GGE(GSM/GPRS/EGPRS)
Frequency
GSM : 850/900/1800/1900
TD-SCDMA:Band 34/39
WCDMA : Band 1/2/5/8
TD-LTEBand 40/38/ 39/41
FDDBand 1/3/5/8
Users
≥10
Status display including network quality, signal strength information, etc.
 Operating temperature
-20°-50°
software
 Support  lock frequency band, lock cell and lock physical cell, support encryption card
Adaptor
DC 2.0(12V,1A)
Port
4 or 1 LAN/1RESET/POWER
Voice
CSFB/VOIP/VOLTE(Optional )
Antenna
Built-in Antenna , high gain
WIFI
  2.4GHz(2.4~2.4835 Ghz)   802.11b/g/n
SIM / USIMSupport SIM and USIM
Configuration upgrade
 Support  local, platform firmware upgrades, configuration upgrades
 Software upgrade

 Support local patch upgrades

Size
116*142*29mm
